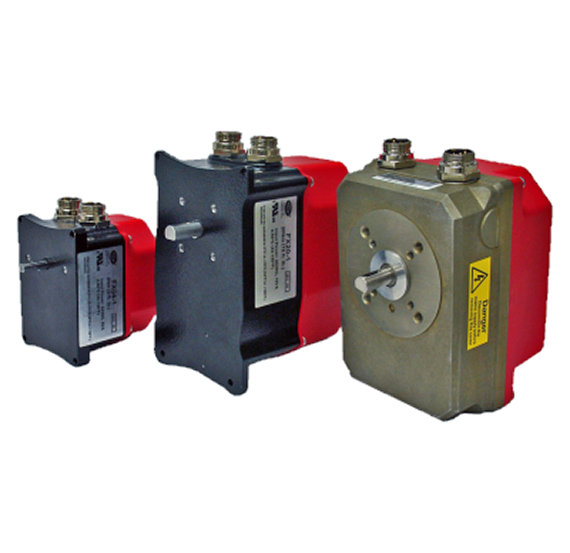

FX Series servos are available for use with your custom industrial application. All that is required is 24VDC power and a Modbus RTU connection.
Use your PLC to connect to the FX Series servo using the Modbus RTU protocol via RS-485.
Connect up to 10 servos in a point-to-point wiring configuration on any single communication port.
- Simple procedure for commanding a position and receiving feedback from the servo
- Choose the drive speed with your PLC, speeds up to 30 seconds for 90 degree travel are available
- Diagnostic information is also provided to help troubleshoot any issues that may arise
- Powered from standard industrial 24VDC power supply
- D-shaft and face tappings provide for easy mounting to couplers and brackets
- Quick disconnects are available for ease in wiring
- Available in three sizes: 4 Nm (3 ft.-lb.), 20 Nm (15 ft.-lb.) and 50 Nm (37 ft.-lb.)
