The Fireye SureFire™ II Natural Draft Gas Pilots are avalible with an outer diameter of either 32 or 48 mm, for intermittent or continuous duty, Class 1 to 3.

The pilots are constructed of high-quality materials, and each unit is checked and tested before dispatch. Unit construction provides a stable flame, ignition repeatability. No moving parts ensure long, trouble-free operation with low maintenance costs.

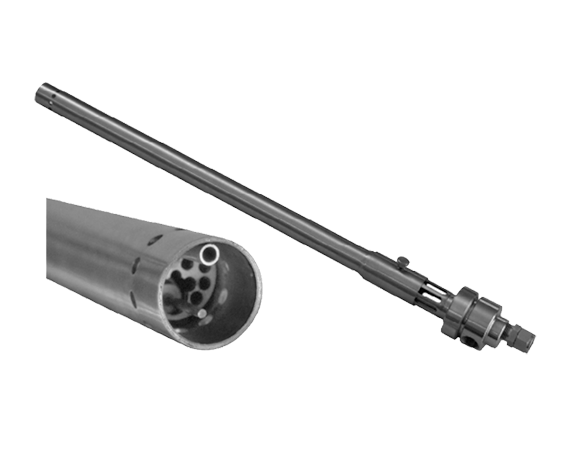

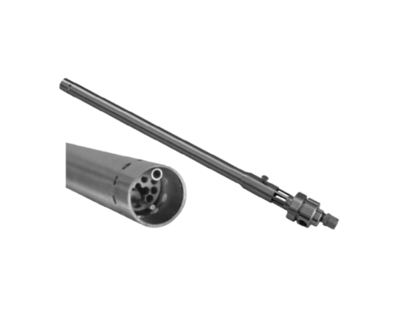

The SureFire II SP-32-NG-ND (32 mm outer diameter, NG - natural gas, ND - natural draft) gas pilot is a reliable and effective source of ignition for oil and gas burners that can operate as an intermittent (light-off), or as a continuous gas pilot.

The SureFire II SP-32-PG-ND (32 mm outer diameter, PG - propane gas, ND - natural draft) gas pilot is a reliable and effective source of ignition for oil and gas burners that can operate as an intermittent (light-off), or as a continuous gas pilot.

The SureFire II SP-48-NG-ND (48 mm outer diameter, NG - natural gas, ND - natural draft) gas pilot is a reliable and effective source of ignition for oil and gas burners that can operate as an intermittent (light-off), or as a continuous gas pilot.

The SureFire II SP-48-PG-ND (48 mm outer diameter, PG - propane gas, ND - natural draft) gas pilot is a reliable and effective source of ignition for oil and gas burners that can operate as an intermittent (light-off), or as a continuous gas pilot.



SureFire II Natural Draft Gas Pilots

Specs

Air flow and pressure
natural draught
Gas Connection
1/2" BSP (inner thread)
Operating Temperature
Max. continuous 300 degrees Celsius, stabilizer, end of gas and air tube 500 degrees Celsius
Material used for construction
all parts: 304/316 SS and heat-resistant steel 310/330 SS

Features

  • Natural gas (NG) or propane gas (PG) options
  • Outer diameter 32 or 48 mm
  • Suitable for intermittent or continuous duty
  • Suitable for Class 1 to 3 applications
  • Designed for ignition of gas or oil main burners
  • Compatible with 16 mm outer diameter ignition rods with a coaxial electrode arrangement
  • Compatible with Fireye high energy spark igniters (HESI)
  • Compatible with Fireye high tension spark igniters (HTI) complete with spark & sense functionality (ionization flame detection)
  • Special design provides a protected ignition and flame stabilization zone in air tube
