The Fireye MBPF-100S and MB600PF provide a visual indication and relay output that signals the user regarding flame presence in a combustion chamber Unique to the module is its ability to use UV or flame rod or both simultaneously.
The MBPF-100S, MB-600PF, MBPF-200S and MBPF-202S modules provide visual indication and electrical output that signal the user regarding flame presence in a combustion chamber.

The module uses Fireye optical ultra-violet scanners and/or flame rods to sense flame presence independently or as components in a burner management system.

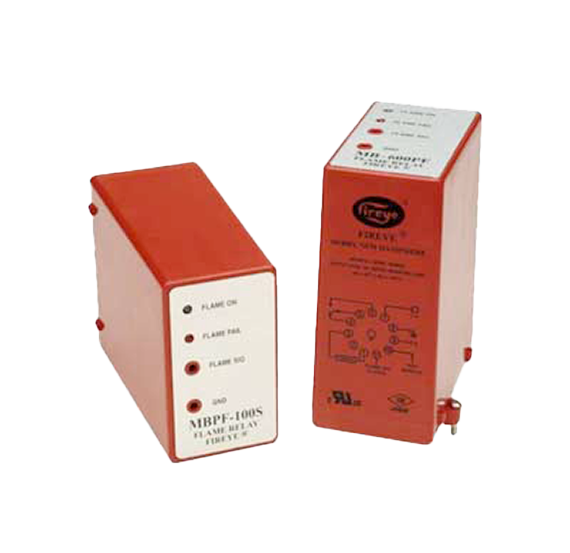

PF Series MBPF-100S Burner Control

Specs

Supply Voltage
MBPF-100S/MB-600PF - 120 VAC (+10%, -15%), 50/60Hz (@ 0.1 Amp consumption)
Flame Relay Output
SPDT 2 Amp Resistive @ 240VAC, 3 Amp @ 24VDC
Operating Temperature
-40 to 140 degrees Fahrenheit (-40 to 60 degrees Celsius)
Humidity
85% RH (max), non-condensing

Features

  • UV detection or flame rod or both
  • Flame ON LED
  • User controlled Flame Fail LED
  • Analog output test points permits direct reading of flame signal
  • Uses standard 11-pin relay base
  • Panel surface or DIN-rail mounting
  • Remote testing of contacts available
  • Self-check scanner available for MBPF-100S and MB-600PF
